How to setup 1100 Plus for Wired & Wireless Conferencing

This article applies to the following ScreenBeam products: 1100 Plus, Conference and USB Pro Switch

This configuration supports both wired and wireless Bring Your Own Meeting (BYOM).

• Wireless presentation and video conferencing with ScreenBeam Conference �
• Wired presentation and video conferencing with HDMI & USB cables

Hardware Requirements

• ScreenBeam 1100 Plus version 11.1.17.x (or later)
• ScreenBeam USB Pro Switch
• All-in-one USB video bar

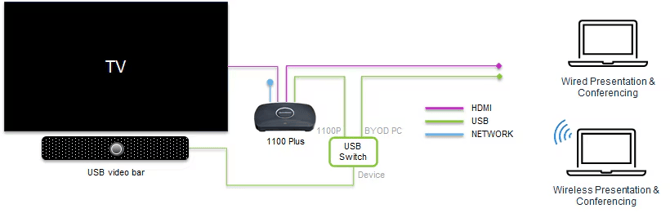

Wiring Diagram

Wiring Connection Steps

On the USB Switch

1. Connect the USB cable from the video bar to the USB Switch Device port
   1. Make sure the video bar is connected to its own power supply
2. Connect the USB Switch Host Input 1 port to the 1100 Plus using the USB cable provided with the USB Switch
   1. Note: It is recommended to use the middle USB 2.0 port first. If peripherals fail to detect, try the outside USB 3.0 (blue) port and lastly try the USB port next to the power supply.
3. Connect the second provided USB Cable to the USB Switch Host Input 2
   1. Note: This USB cable is designated for the BYOD computer

On the 1100 Plus

1. Connect the HDMI cable from the display to the 1100 Plus HDMI Out port
2. Connect another HDMI cable to the 1100 Plus HDMI In port
   1. Note: This HDMI cable is designated for the BYOD computer
